SimpleKey Event Manager (SEM) allows additional building functions to be controlled and monitored when connected to a SimpleKey system controller.
Supplied in a DIN rail format with simple connections to the free topography CAME KMS bus, the SEM can connect in exactly the same way as other SimpleKey components.
The SEM works with the SimpleKey system to provide monitoring and control for additional on-site equipment i.e. lift control, emergency lighting, BMS alarms and analogue door entry entry integration.

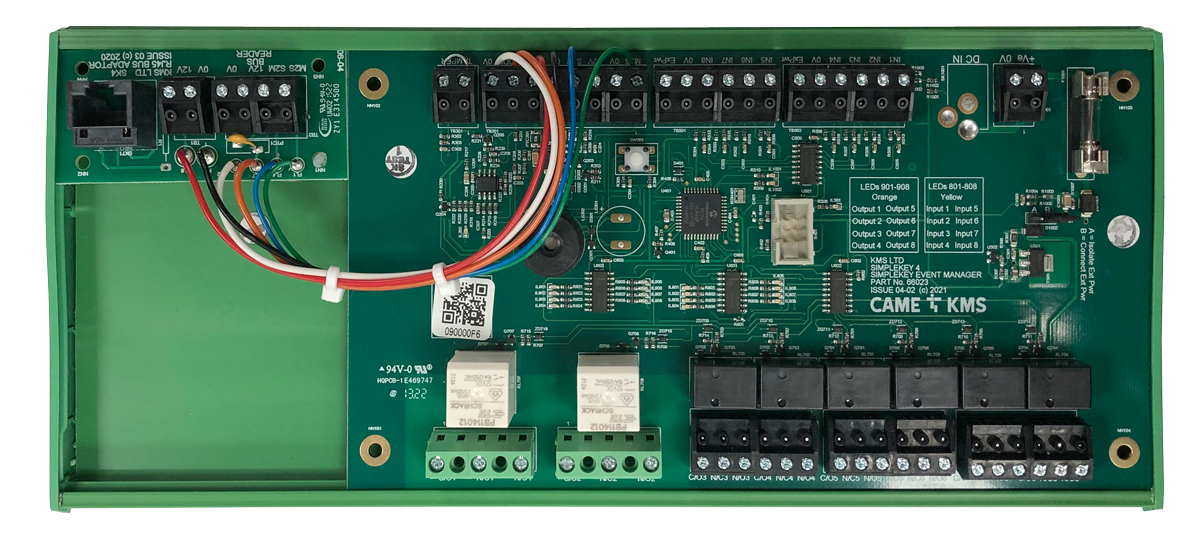

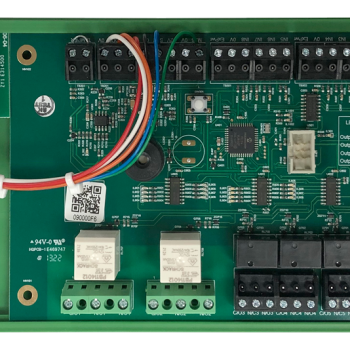

With 8 programmable inputs and 8 programmable relays (2 rated at 10.0A and 8 at 1.0A) connected by the KMS BUS via ether a plug-in J45 socket and/or standard terminal connector, whilst power for the pcb and optionally, the outputs is supplied via a separate 12V input. Each pcb has a unique QR code which identifies the components on the KMS BUS. Up to 4 SEMs can be connected to each SimpleKey System Controller.
